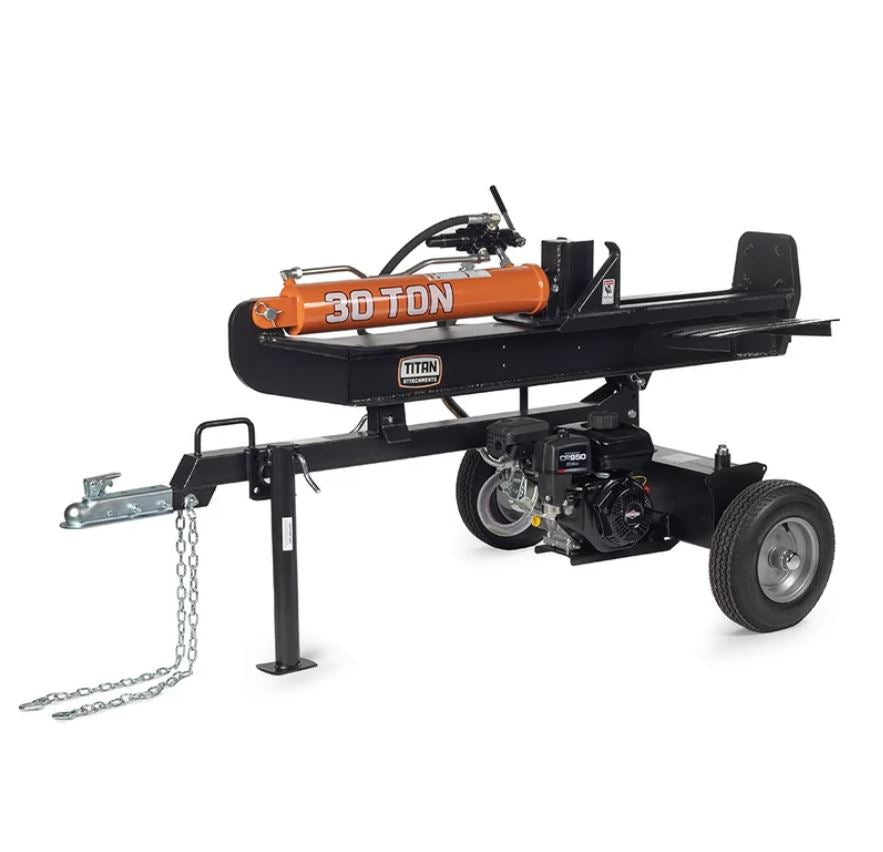

30 Ton Horizontal/Vertical Tow-Behind Log Splitter

30 Ton Horizontal/Vertical Tow-Behind Log Splitter

Regular price $640.00
Sale price $640.00 Regular price
SAVE % Sold out

30 Ton Horizontal/Vertical Tow-Behind Log Splitter

Regular price $640.00
Sale price $640.00 Regular price
SAVE % Sold out

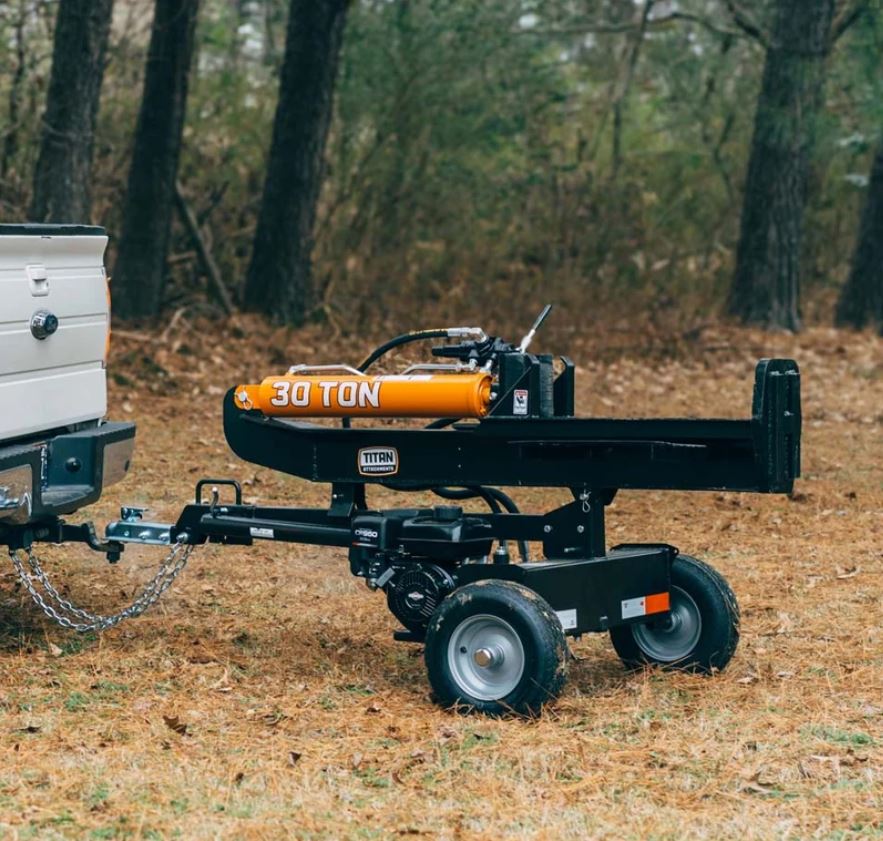

    Equipped with a powerful engine, this industrial log splitter delivers up to 30 tons of splitting force, handling tough logs with ease. Use the implement horizontally to split small logs at waist height or vertically to roll larger logs onto the splitter. This attachment accommodates logs up to 24" long and 16" in diameter, including hard woods like oak, elm, walnut, and cherry. Featuring its own single cylinder hydraulic system and powered by a 208cc Briggs and Stratton engine, this splitter has a 13.5 second cycle time for quick and effective log processing. Attach it to any ATV, UTV, or smaller tractor with a 2" ball tow hitch for easy transport around the home, cabin, or lodge. Built from heavy-gauge steel and an industrial-strength I-beam design, this splitter offers exceptional strength and longevity for even the toughest woodcutting needs.



    Specifications

    Overall Height

    44-in.

    Overall Length

    90-in.

    Overall Width

    47-in.

    Max Log Length

    24-in.

    Max Log Diameter

    16-in.

    Log Catcher Dimensions

    18-in. x 11.5-in.

    Log Cradle

    25-in. x 10-in.

    Cylinder Length

    29.75-in.

    Cylinder Diameter

    4.25-in.

    Wedge Height

    8-in.

    Wedge Length

    3.5-in.

    Wedge Width

    0.75-in.

    Power

    Cycle Time

    13.5 Sec.

    Engine Horsepower

    208cc

    Hydraulic Capacity

    8 Gal

    Max Splitting Force

    30 Ton

    Material

    Finish

    Powder-Coated Black/Orange

    Material

    Steel

    Weight

    Product Weight

    502 lb.


    • Up to 30 tons of splitting force
    • 208cc Briggs and Stratton engine
    • Vertical or horizontal orientation
    • 13.5 second cycle time
    • Accepts logs up to 24" long and 16" in diameter
    • Square log cradle for quicker, easier, and safer splitting
    • Single cylinder hydraulic system
    • Auto return valve with adjustable detent
    • Rear tires for easy transport
    • Industrial-strength I-beam with heavy plate steel reinforcement
    • Kickstand to keep the implement level
    • Fits ATV/UTV/small tractor with 2" ball tow hitch
